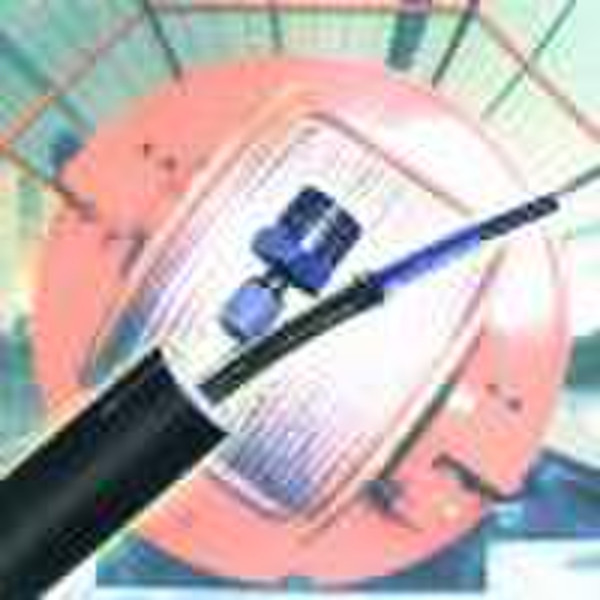

Instrument Insulating Tube

Features:1) Thermal insulation, waterproof and heat tracing 2) Good reliability: The outer coating is PVC plastic resisting water and moisture.The thermal insulation material is non-woven glass fiber cotton with uniformand reliable insulation effect. The inner tube is of fluorplastic, resisting heatand corrosion. The heat tracing material is standard heating tape. All thematerials are of integrated manufacture by special machines with long servicelife 3) Easy installation: The product is of flexible material, and the inner tubes can beconnected with the drawn-in attachment joints whose sealing is reliable anddisassembling is convenient. The installation process needs not prefabrication,thus the construction period can be shortened. With anti-explosive joints theproduct can also be applied to anti-explosive occasions 4) Attractive appearance: The appearance design of the model is simple and smart 5) This product features contribute to the standardization of design work, easyand quick construction work, as well as reliable working and convenientmaintenanceSpecifications:1) Highest heat-resisting temperature of inner tube: 205°C (FEP)2) Pressure resistance of the inner tube:: lOKGf/cm² (150°C )3) Highest heat-resisting temperature of outer protection coating: 105°C 4) Maintenance temperature of inner tube: 140°C (40W/m)5) Lowest installation temperature: -9°C 6) Highest contact environment temperature: 60°C 7) Heat transmission coefficient of the insulation layer: 2.6/m² 8) Working voltage and power of the heating tape: 220V, 40W/m9) External diameter of the inner tube: 7mm 10) Wall thickness: 1mm11) Inner tube material: FEP Fluor plastic insulating tubeNote: The specifications are classified by the tube diameter as 6 x 1, 7 x 1, 8 x 1, 8 x 1.5, as can also be custom-made. Please see the sample book or special order for detailed parameters.Installation instructions:First cut off the required length, and leave a proper length of about 0.5m. Then separate the heating tape from the inner tube carefully, cut the insulation layer of the broken end in the shape of cone and wrap with sealing tapes to avoid moisture. The connection of the inner tube and equipment can use flared joints. The connection of power supply and the heating tape can use standard joint-box or copper clamps with sealing tapes. The flared joints and self-vulcanizing sealing tapes can be provided by users themselves or they can order them from us with the product purchase.
